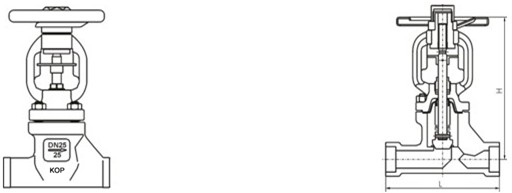

| DIN&EN Bellows Sealed Globe Valve-Forged Steel |
| EN&DIN Lift check Straight way with Flange |
|
|
| Size |
15 |
20 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
|
|
| L |
130 |
150 |
200 |
230 |
290 |
310 |
350 |
400 |
480 |
600 |
730 |
850 |
980 |
1100 |
|
|
| H(close) |
60 |
65 |
85 |
90 |
105 |
125 |
145 |
173 |
208 |
370 |
460 |
505 |
555 |
635 |
|
|
| Stroke |
10 |
10 |
18 |
18 |
20 |
25 |
30 |
40 |
50 |
70 |
75 |
80 |
120 |
150 |
|
|
| Weight(kg) |
PN16 |
3.4 |
3.9 |
8.2 |
10.8 |
16.3 |
22.5 |
32.0 |
51.0 |
74.0 |
139 |
208 |
308 |
520 |
820 |
|
|
| PN25 |
3.4 |
3.9 |
8.2 |
10.8 |
16.9 |
24.1 |
35.0 |
55.7 |
80.2 |
149.6 |
223.2 |
328 |
554.4 |
865.2 |
|
|
| PN40 |
3.4 |
3.9 |
8.2 |
10.8 |
16.9 |
24.1 |
35.0 |
55.7 |
80.2 |
157.5 |
240.4 |
356.0 |
586.8 |
927.0 |
|
|
| KV |
3.9 |
6.9 |
27.8 |
43.5 |
71.3 |
112.0 |
174.0 |
267.0 |
380.0 |
670.0 |
1060.0 |
1514.0 |
2060 |
2690 |
|
|
| Main components materials |
Standard |
| Body/Bonnet |
Spring |
Bolt |
Gasket |
Sealing face |
Sutiable medium |
Suitable temp |
Design |
|
| GS-C25/GS-C2 5N/GP240GH/ 1.0619 |
ss304 |
5.8/G |
SS304+ Graphite |
13Cr/13Cr 13Cr/STL STL/STL |
WATER OIL 、GAS STEAM |
≤425℃ |
EN13709 |
| F-F |
| 1.4308 |
ss304 |
0Cr18Ni9 |
SS304+ Graphite/ PTFE |
304/304 STL/304 STL/STL |
Corrosive Media |
≤200℃ |
EN558-1/DIN3202F1 |
|
| Flange |
| 1.4408 |
ss316 |
0Cr18Ni9 |
SS304+ Graphite/ PTFE |
316/316 STL/316 STL/STL |
Corrosive Media |
≤200℃ |
EN1092 |
| Test |
| EN12266 |
|
|
|
|
|
