| 美标铸钢波纹管闸阀 |
|

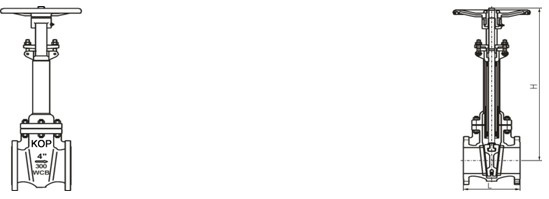

API&BS Bellow seal gate valve with Flange |
|
|
| Size |
2 |
2.5 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
|
|
|
|
| L |
CLASS150 |
178 |
190 |
203 |
229 |
254 |
267 |
292 |
330 |
356 |
|
|
|
|
| CLASS300 |
216 |
241 |
283 |
305 |
381 |
403 |
419 |
457 |
502 |
|
|
|
|
| H |
CLASS150 |
480 |
500 |
580 |
735 |
790 |
950 |
1160 |
1460 |
1780 |
|
|
|
|
| CLASS300 |
490 |
550 |
600 |
750 |
890 |
990 |
1300 |
1530 |
1840 |
|
|
|
|
| Stroke |
60 |
77 |
93 |
115 |
138 |
165 |
218 |
268 |
320 |
|
|
|
|
| Weight(kg) |
CLASS150 |
25.3 |
35 |
44 |
69 |
72 |
119 |
189 |
290 |
380 |
|
|
|
|
| CLASS300 |
33 |
40 |
67 |
84 |
116 |
170 |
310 |
450 |
630 |
|
|
|
|
| KV |
90 |
149 |
236 |
360 |
567 |
815 |
1400 |
2300 |
3249 |
|
|
|
|
| Main components materials |
Standard |
| Body |
Bonnet |
Bellow |
Bolt |
Nut |
Packing |
Gasket |
Sealing face |
Sutiable medium |
Suitable temp |
Design |
|
| WCB |
WCB |
ss304 |
Apl193 B7 |
A194 2H |
Graphite |
SS304+ Graphite |
13Cr/13Cr 13Cr/STL STL/STL |
WATER OIL 、GAS STEAM |
≤350℃ |
API6D,API600 |
| F-F |
| CF8 |
CF8 |
ss304 |
A302 B8 |
A194.8 |
PTFE/ Grapthite |
SS304+ Graphite/PTFE |
304/304 STL/304 STL/STL |
Corrosive Media |
≤200℃ |
ANSI B16.10 |
|
| Flange |
| CF8M |
CF8M |
ss316L |
A302 B8 |
A194.8 |
PTFE/ Grapthite |
SS304+ Graphite/PTFE |
316/316 STL/316 STL/STL |
Corrosive Media |
≤200℃ |
ANSI B16.5 |
| Test |
| API598 |
| |
|

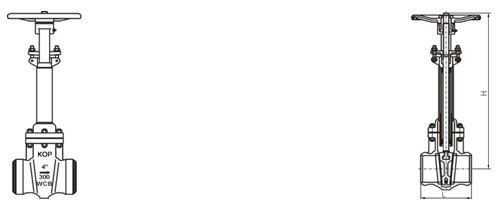

API&BS bellow seal gate valve with Welding |
|
|
| Size |
2 |
2.5 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
|
|
|
|
| L |
CLASS150 |
216 |
241 |
283 |
305 |
381 |
404 |
419 |
457 |
502 |
|
|
|
|
| CLASS300 |
216 |
241 |
283 |
305 |
381 |
403 |
419 |
457 |
502 |
|
|
|
|
| H |
CLASS150 |
480 |
500 |
580 |
735 |
790 |
950 |
1160 |
1460 |
1780 |
|
|
|
|
| CLASS300 |
490 |
550 |
600 |
750 |
890 |
990 |
1300 |
1530 |
1840 |
|
|
|
|
| Stroke |
60 |
77 |
93 |
115 |
138 |
165 |
218 |
268 |
320 |
|
|
|
|
| Weight(kg) |
CLASS150 |
22.6 |
31.5 |
40 |
62 |
64 |
108 |
175 |
270 |
355 |
|
|
|
|
| CLASS300 |
29.4 |
36 |
62 |
76 |
64 |
157 |
293 |
425 |
598 |
|
|
|
|
| KV |
90 |
149 |
236 |
360 |
567 |
815 |
1400 |
2300 |
3249 |
|
|
|
|
| Main components materials |
Standard |
| Body |
Bonnet |
Bellow |
Bolt |
Nut |
Packing |
Gasket |
Sealing face |
Sutiable medium |
Suitable temp |
Design |
|
| WCB |
WCB |
ss304 |
Apl193 B7 |
A194 2H |
Graphite |
SS304+ Graphite |
13Cr/13Cr 13Cr/STL STL/STL |
WATER OIL 、GAS STEAM |
≤350℃ |
API6D,API600 |
| END-END |
| CF8 |
CF8 |
ss304 |
A302 B8 |
A194.8 |
PTFE/ Grapthite |
SS304+ Graphite/PTFE |
304/304 STL/304 STL/STL |
Corrosive Media |
≤200℃ |
ANSI B16.10 |
|
| End dimensions |
| CF8M |
CF8M |
ss316L |
A302 B8 |
A194.8 |
PTFE/ Grapthite |
SS304+ Graphite/PTFE |
316/316 STL/316 STL/STL |
Corrosive Media |
≤200℃ |
ANSI B16.25 |
| Test |
| API598 |
|
|
|
|
|
