| 美标铸钢波纹管截止阀 |

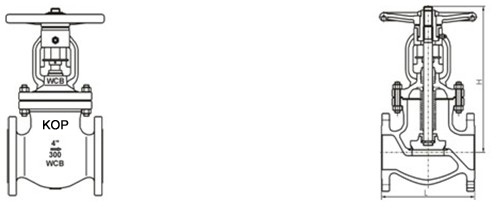

| API&BS Bellow seal globe valve with Flange |
|
|
| Size |
2 |
2.5 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
|
|
|
|
| L |
CLASS150 |
203 |
216 |
241 |
292 |
356 |
406 |
495 |
622 |
698 |
|
|
|
|
| CLASS300 |
267 |
292 |
241 |
356 |
400 |
444 |
559 |
622 |
711 |
|
|
|
|
| H |
CLASS150 |
318 |
355 |
395 |
430 |
490 |
545 |
645 |
790 |
930 |
|
|
|
|
| CLASS300 |
325 |
360 |
405 |
446 |
505 |
560 |
675 |
820 |
960 |
|
|
|
|
| Stroke |
21 |
24 |
30 |
35 |
38 |
48 |
60 |
70 |
85 |
|
|
|
|
| Weight(kg) |
CLASS150 |
18 |
30 |
41 |
64 |
86 |
120 |
200 |
295 |
450 |
|
|
|
|
| CLASS300 |
25 |
34 |
48 |
73 |
103 |
168 |
260 |
460 |
615 |
|
|
|
|
| KV |
47.0 |
77.0 |
120.0 |
188.0 |
288.0 |
410.0 |
725.0 |
1145.0 |
1635.0 |
|
|
|
|
| Main components materials |
Standard |
| Body |
Bonnet |
Bellow |
Bolt |
Nut |
Packing |
Gasket |
Sealing face |
Sutiable medium |
Suitable temp |
Design |
|
| WCB |
WCB |
ss304 |
Apl193 B7 |
A194 2H |
Graphite |
SS304+ Graphite |
13Cr/13Cr 13Cr/STL STL/STL |
WATER OIL 、GAS STEAM |
≤350℃ |
ANSI B16.34,BS1873 |
| F-F |
| CF8 |
CF8 |
ss304 |
A302 B8 |
A194.8 |
PTFE/ Grapthite |
SS304+ Graphite/ PTFE |
304/304 STL/304 STL/STL |
Corrosive Media |
≤200℃ |
ANSI B16.10 |
|
| Flange |
| CF8M |
CF8M |
ss316L |
A302 B8 |
A194.8 |
PTFE/ Grapthite |
SS304+ Graphite/ PTFE |
316/316 STL/316 STL/STL |
Corrosive Media |
≤200℃ |
ANSI B16.5 |
| Test |
| API598 |
| |

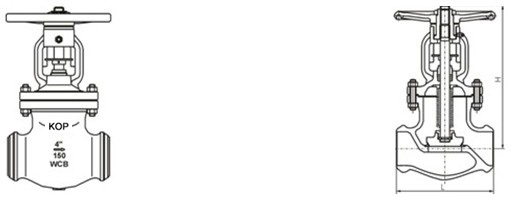

| API&BS Bellow seal globe valve with Welding |
|
|
| Size |
2 |
2.5 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
|
|
|
|
| L |
CLASS150 |
203 |
216 |
241 |
292 |
356 |
406 |
495 |
622 |
698 |
|
|
|
|
| CLASS300 |
267 |
292 |
318 |
356 |
400 |
444 |
559 |
622 |
711 |
|
|
|
|
| H |
CLASS150 |
318 |
355 |
395 |
430 |
490 |
545 |
645 |
790 |
930 |
|
|
|
|
| CLASS300 |
325 |
360 |
405 |
446 |
505 |
560 |
675 |
820 |
960 |
|
|
|
|
| Stroke |
21 |
24 |
30 |
35 |
38 |
48 |
60 |
70 |
85 |
|
|
|
|
| Weight(kg) |
CLASS150 |
14.6 |
26 |
36 |
56.5 |
76 |
107 |
183 |
271 |
420 |
|
|
|
|
| CLASS300 |
21.4 |
29.5 |
43 |
65 |
92 |
154 |
242 |
434 |
580 |
|
|
|
|
| KV |
47.0 |
77.0 |
120.0 |
188.0 |
288.0 |
410.0 |
725.0 |
1145.0 |
1635.0 |
|
|
|
|
| Main components materials |
Standard |
| Body |
Bonnet |
Bellow |
Bolt |
Nut |
Packing |
Gasket |
Sealing face |
Sutiable medium |
Suitable temp |
Design |
|
| WCB |
WCB |
ss304 |
Apl193 B7 |
A194 2H |
Graphite |
SS304+ Graphite |
13Cr/13Cr 13Cr/STL STL/STL |
WATER OIL 、GAS STEAM |
≤350℃ |
ANSI B16.34,BS1873 |
| END-END |
| CF8 |
CF8 |
ss304 |
A302 B8 |
A194.8 |
PTFE/ Grapthite |
SS304+ Graphite/ PTFE |
304/304 STL/304 STL/STL |
Corrosive Media |
≤200℃ |
ANSI B16.10 |
|
| End dimensions |
| CF8M |
CF8M |
ss316L |
A302 B8 |
A194.8 |
PTFE/ Grapthite |
SS304+ Graphite/ PTFE |
316/316 STL/316 STL/STL |
Corrosive Media |
≤200℃ |
ANSI B16.25 |
| Test |
| API598 |
|
|
|
|
|
