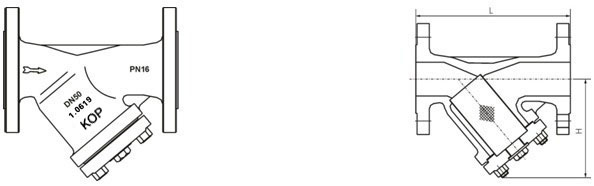

| EN&DIN Y-strainer with Flange |
|
|
| Size |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
| L |
130 |
150 |
160 |
180 |
200 |
230 |
290 |
310 |
350 |
400 |
480 |
600 |
730 |
850 |
980 |
1100 |
| H(close) |
85 |
95 |
110 |
125 |
145 |
155 |
170 |
205 |
230 |
270 |
318 |
400 |
555 |
620 |
700 |
820 |
| Stroke |
93 |
115 |
134 |
157 |
193 |
200 |
225 |
255 |
300 |
355 |
407 |
520 |
780 |
900 |
985 |
1120 |
| Weight(kg) |
PN16 |
2.8 |
3.8 |
5.3 |
7.2 |
9.0 |
11.8 |
16.2 |
22.4 |
35.0 |
45.4 |
62 |
132 |
220 |
330 |
540 |
830 |
| PN25 |
2.8 |
3.8 |
5.3 |
7.2 |
9.0 |
11.8 |
16.8 |
24.0 |
38.8 |
50.1 |
68 |
142.6 |
233.4 |
350 |
574 |
875 |
| PN40 |
2.8 |
3.8 |
5.3 |
7.2 |
9.0 |
11.8 |
17.4 |
24.6 |
39.7 |
52.5 |
70.4 |
153.0 |
250.0 |
360.0 |
614 |
940 |
| KV |
6.3 |
11 |
17.5 |
28 |
44 |
69 |
118 |
178 |
270 |
420 |
620 |
1100 |
1700 |
2500 |
3400 |
4400 |
| Main components materials |
Standard |
| Body/Bonnet |
Screen |
Bolt |
Gasket |
Net |
Sutiable medium |
Suitable temp |
Design |
|
| GS-C25/GS-C2 5N/GP240GH/ 1.0619 |
ss304 |
5.8 |
SS304+ Graphite |
ss304 |
WATER OIL 、GAS STEAM |
≤425℃ |
MFTS"Standard |
| F-F |
| 1.4308 |
ss304 |
0Cr18Ni9 |
SS304+ Graphite/ PTFE |
ss304 |
Corrosive Media |
≤200℃ |
EN558-1/DIN3202F1 |
|
| Flange |
| 1.4408 |
ss316 |
0Cr18Ni9 |
SS304+ Graphite/ PTFE |
ss316L |
Corrosive Media |
≤200℃ |
EN1092 |
| Test |
| EN12266 |
| |

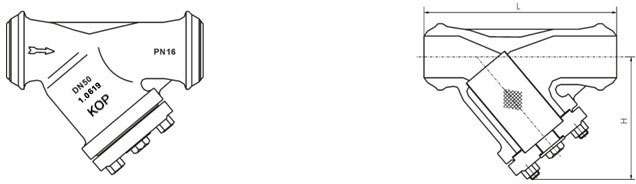

| EN&DIN Y-strainer with welding |
|
|
| Size |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
| L |
130 |
150 |
160 |
180 |
200 |
230 |
290 |
310 |
350 |
400 |
480 |
600 |
730 |
850 |
980 |
1100 |
| H(close) |
85 |
95 |
110 |
125 |
145 |
155 |
170 |
205 |
230 |
270 |
318 |
400 |
555 |
620 |
700 |
820 |
| Stroke |
93 |
115 |
134 |
157 |
193 |
200 |
225 |
255 |
300 |
355 |
407 |
520 |
780 |
900 |
985 |
1120 |
| Weight(kg) |
PN16 |
1.9 |
2.8 |
3.8 |
4.8 |
6.2 |
8.3 |
11.8 |
17.8 |
28.6 |
37 |
51.2 |
120 |
203 |
308 |
510 |
788 |
| PN25 |
2.0 |
2.9 |
4.0 |
5.0 |
6.5 |
8.6 |
12.2 |
18.5 |
29.7 |
38.1 |
53.4 |
123 |
208 |
315 |
540 |
835 |
| PN40 |
2.1 |
3.0 |
4.3 |
5.4 |
7.0 |
9.1 |
13.0 |
19.8 |
31.4 |
40.3 |
58.8 |
129.0 |
223.0 |
348.0 |
587 |
887 |
| KV |
6.3 |
11 |
18 |
28 |
44 |
69 |
118 |
178 |
270 |
420 |
620 |
1100 |
1700 |
2500 |
3400 |
4400 |
| Main components materials |
Standard |
| Body/Bonnet |
Screen |
Bolt |
Gasket |
Net |
Sutiable medium |
Suitable temp |
Design |
|
| GS-C25/GS-C2 5N/GP240GH/ 1.0619 |
ss304 |
5.8 |
SS304+ Graphite |
ss304 |
WATER OIL 、GAS STEAM |
≤425℃ |
MFTS"Standard |
| END-END |
| 1.4308 |
ss304 |
0Cr18Ni9 |
SS304+ Graphite/ PTFE |
ss304 |
Corrosive Media |
≤200℃ |
EN558-1/DIN3202F1 |
|
| End dimensions |
| 1.4408 |
ss316 |
0Cr18Ni9 |
SS304+ Graphite/ PTFE |
ss316L |
Corrosive Media |
≤200℃ |
EN12627 |
| Test |
| EN12266 |
