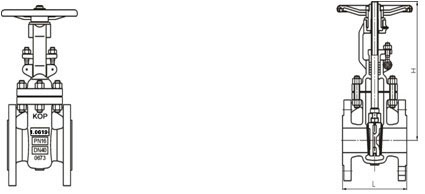

德标闸阀F5
EN&DIN gate valve with Flange
Size
50
65
80
100
125
150
200
250
300
350
400
500
600
L
F4
150
170
180
190
200
210
230
250
270
F5
250
270
280
300
325
350
400
450
500
550
600
700
800
H(close)
F4
290
320
360
440
500
560
700
850
990
F5
310
365
395
425
480
520
620
710
760
900
1000
1225
1360
Stroke
60
75
90
110
138
162
212
265
318
368
424
525
628
Weight
(kg)
PN10 (F4)
16.0
20.5
28.0
33.0
47.5
62.5
91.0
131.5
176.0
PN10 (F5)
19.5
30.0
37.5
52.0
68.5
84.5
141.5
201.0
280.5
340.0
474
724
1166
PN16(F5)
19.5
30.0
37.5
52.0
68.5
84.5
141.5
201.0
280.5
KV
90
149
236
360
567
815
1400
2300
3249
4420
5770
9015
12980
Main components materials
Standard
Body
Bonnet
Bolt
Nut
Packing
Gasket
Sealing face
Sutiable medium
Suitable temp
Design
GS-C25/GS-C2 5N/GP240GH/
1.0619
GS-C25/GS-C2 5N/GP240GH/
1.0619
G
YK
Graphite
SS304+ Graphite
13Cr/13Cr 13Cr/STL STL/STL
WATER
OIL 、GAS STEAM
≤425℃
DIN3352
DIN3352
1.4308
1.4308
0Cr18Ni9
0Cr18Ni9
PTFE/ Grapthite
SS304+ Graphite/ PTFE
304/304 STL/304 STL/STL
Corrosive Media
≤200℃
EN558-1/DIN3202F4/F5
Flange
1.4408
1.4408
0Cr18Ni9
0Cr18Ni9
PTFE/ Grapthite
SS304+ Graphite/ PTFE
316/316 STL/316 STL/STL
Corrosive Media
≤200℃
EN1092
Test
EN12266
