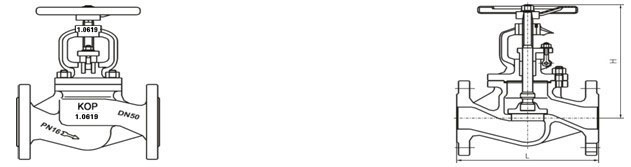

| EN&DIN globe valve Straight way with Flange |
|
|
| Size |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
| L |
130 |
150 |
160 |
180 |
200 |
230 |
290 |
310 |
350 |
400 |
480 |
600 |
730 |
850 |
980 |
1100 |
| H(close) |
180 |
190 |
220 |
220 |
255 |
260 |
265 |
300 |
310 |
390 |
410 |
495 |
660 |
705 |
850 |
950 |
| Stroke |
10 |
12 |
16 |
16 |
20 |
24 |
28 |
30 |
35 |
42 |
50 |
80 |
90 |
110 |
120 |
150 |
| Weight(kg) |
PN16 |
3.6 |
5.2 |
6.8 |
8.5 |
11.7 |
16 |
22.8 |
31 |
38.4 |
58 |
82 |
167 |
314 |
420 |
590 |
954 |
| PN25 |
3.6 |
5.2 |
6.8 |
8.5 |
11.7 |
16 |
23.3 |
32.6 |
41.4 |
62.7 |
88.2 |
177.2 |
329.2 |
450 |
624.4 |
999.2 |
| PN40 |
3.6 |
5.2 |
6.8 |
8.5 |
11.7 |
16 |
23.6 |
33.4 |
42.4 |
64.2 |
91.0 |
186.5 |
340.0 |
484.0 |
672.0 |
1026 |
| KV |
4.6 |
8 |
13.2 |
21.0 |
33.0 |
51.0 |
83.0 |
133.0 |
205.0 |
315.0 |
454.0 |
780.0 |
1285.0 |
1805.0 |
2225 |
2906 |
| Main components materials |
Standard |
| Body |
Bonnet |
Bellow |
Bolt |
Nut |
Packing |
Gasket |
Sealing face |
Sutiable medium |
Suitable temp |
Design |
| GS-C25/GS-C2 5N/GP240GH/ 1.0619 |
GS-C25/GS-C2 5N/GP240GH/ 1.0619 |
0Cr13 |
G |
YK |
Graphite |
SS304+ Graphite |
13Cr/13Cr 13Cr/STL STL/STL |
WATER OIL 、GAS STEAM |
≤425℃ |
EN13709 |
| F-F |
| 1.4308 |
1.4308 |
0Cr13 |
0Cr18Ni9 |
0Cr18Ni9 |
PTFE/ Grapthite |
SS304+ Graphite/ PTFE |
304/304 STL/304 STL/STL |
Corrosive Media |
≤200℃ |
EN558-1/DIN3202F1 |
| Flange |
| 1.4408 |
1.4408 |
0Cr13 |
0Cr18Ni9 |
0Cr18Ni9 |
PTFE/ Grapthite |
SS304+ Graphite/ PTFE |
316/316 STL/316 STL/STL |
Corrosive Media |
≤200℃ |
EN1092 |
| Test |
| EN12266 |
| |

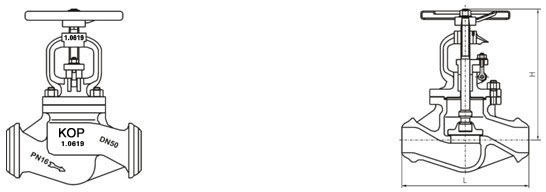

| EN&DIN globe valve Straight way with welding |
|
|
| Size |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
| L |
130 |
150 |
160 |
180 |
200 |
230 |
290 |
310 |
350 |
400 |
480 |
600 |
730 |
850 |
980 |
1100 |
| H(close) |
180 |
190 |
220 |
220 |
255 |
260 |
265 |
300 |
310 |
390 |
410 |
495 |
660 |
705 |
850 |
950 |
| Stroke |
10 |
12 |
16 |
16 |
20 |
24 |
28 |
30 |
35 |
42 |
50 |
80 |
90 |
110 |
120 |
150 |
| Weight(kg) |
PN16 |
2.1 |
3.8 |
5.1 |
5.7 |
8.4 |
11.7 |
17.7 |
25.3 |
30.9 |
49.2 |
69.5 |
153 |
294 |
404 |
555 |
905 |
| PN25 |
2.1 |
3.8 |
5.1 |
5.7 |
8.4 |
11.7 |
17.7 |
25.8 |
31.8 |
49.7 |
71.2 |
155.8 |
299 |
410 |
565 |
919 |
| PN40 |
2.1 |
3.8 |
5.1 |
5.7 |
8 |
12 |
18 |
27 |
33 |
51 |
74 |
159 |
305 |
425 |
579 |
1844 |
| KV |
4.6 |
8 |
13.2 |
21.0 |
33 |
51 |
83 |
133 |
205 |
315 |
454 |
780 |
1285 |
1805 |
2225 |
2906 |
| EN&DIN globe valve Straight way with welding |
Standard |
| Body |
Bonnet |
Bellow |
Bolt |
Nut |
Packing |
Gasket |
Sealing face |
Sutiable medium |
Suitable temp |
Design |
| GS-C25/GS-C2 5N/GP240GH/ 1.0619 |
GS-C25/GS-C2 5N/GP240GH/ 1.0619 |
0Cr13 |
G |
YK |
Graphite |
SS304+ Graphite |
13Cr/13Cr 13Cr/STL STL/STL |
WATER OIL 、GAS STEAM |
≤425℃ |
EN13709 |
| END-END |
| 1.4308 |
1.4308 |
0Cr13 |
0Cr18Ni9 |
0Cr18Ni9 |
PTFE/ Grapthite |
SS304+ Graphite/ PTFE |
304/304 STL/304 STL/STL |
Corrosive Media |
≤200℃ |
EN558-1/DIN3202F1 |
| End dimensions |
| 1.4408 |
1.4408 |
0Cr13 |
0Cr18Ni9 |
0Cr18Ni9 |
PTFE/ Grapthite |
SS304+ Graphite/ PTFE |
316/316 STL/316 STL/STL |
Corrosive Media |
≤200℃ |
EN12627 |
| Test |
| EN12266 |
