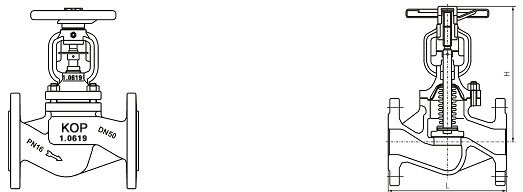

| EN&DIN Bellows seal globe valve Straight way with Flange |
|
 |
| Size |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
| L |
130 |
150 |
160 |
180 |
200 |
230 |
290 |
310 |
350 |
400 |
480 |
600 |
730 |
850 |
980 |
1100 |
| H(closed) |
196 |
196 |
205 |
205 |
222 |
224 |
240 |
265 |
350 |
380 |
410 |
550 |
715 |
790 |
950 |
1030 |
| Stroke |
8 |
8 |
10 |
10 |
15 |
16 |
18 |
22 |
28 |
34 |
40 |
60 |
75 |
85 |
100 |
115 |
| Weight(kg) |
PN16 |
4.2 |
4.7 |
5.6 |
7.5 |
9.5 |
11.9 |
17.4 |
23 |
36 |
56.2 |
78.8 |
154 |
238 |
339 |
610 |
940 |
| PN25 |
4.2 |
4.7 |
5.6 |
7.5 |
9.5 |
11.9 |
18.4 |
25.3 |
38.2 |
62 |
86 |
169 |
260 |
370 |
663 |
982 |
| PN40 |
4.2 |
4.7 |
5.6 |
7.5 |
9.5 |
11.9 |
18.4 |
26.0 |
38.0 |
64.0 |
87.0 |
178.0 |
283.0 |
398.0 |
690.0 |
1039 |
| KV |
4.2 |
7.4 |
12.0 |
19.0 |
30.0 |
47.0 |
77.0 |
120.0 |
188.0 |
288.0 |
410.0 |
725.0 |
1145.0 |
1635.0 |
2225 |
2906 |
| Main components materials |
Standard |
| Body |
Bonnet |
Bellow |
Bolt |
Nut |
Packing |
Gasket |
Sealing face |
Sutiable medium |
Suitable temp |
Design |
| GS-C25/GS-C2 5N/GP240GH/ 1.0619 |
GS-C25/GS-C25 N/GP240GH/1.0619 |
SS304 |
Y |
YK |
Graphite |
SS304+ Graphite |
13Cr/13Cr 13Cr/STL STL/STL |
WATER OIL 、GAS STEAM |
≤350℃ |
EN13709 |
| F-F |
| 1.4308 |
1.4308 |
SS304 |
0Cr18Ni9 |
0Cr18Ni9 |
PTFE/ Grapthite |
SS304+ Graphite/ PTFE |
304/304 STL/304 STL/STL |
Corrosive Media |
≤200℃ |
EN558-1/DIN3202F1 |
| Flange |
| 1.4408 |
1.4408 |
ss316L |
0Cr18Ni9 |
0Cr18Ni9 |
PTFE/ Grapthite |
SS304+ Graphite/ PTFE |
316/316 STL/316 STL/STL |
Corrosive Media |
≤200℃ |
EN1092 |
| Test |
| EN12266 |
| |

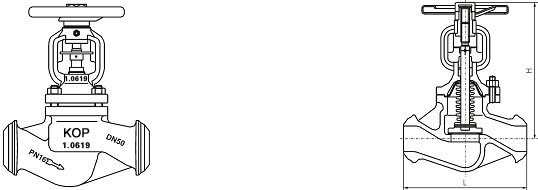

| EN&DIN Bellows seal globe valve Straight way with welding |
|
 |
| Size |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
| L |
130 |
150 |
160 |
180 |
200 |
230 |
290 |
310 |
350 |
400 |
480 |
600 |
730 |
850 |
980 |
1100 |
| H(close) |
196 |
196 |
205 |
205 |
222 |
224 |
240 |
265 |
350 |
380 |
410 |
550 |
715 |
790 |
950 |
1030 |
| Stroke |
8 |
8 |
10 |
10 |
15 |
16 |
18 |
22 |
28 |
380 |
40 |
60 |
75 |
85 |
100 |
115 |
| Weight(kg) |
PN16 |
3.2 |
3.4 |
4 |
5 |
6.5 |
8 |
12.8 |
18.3 |
29.6 |
48.3 |
68.2 |
140.5 |
218 |
312 |
567 |
867 |
| PN25 |
3.2 |
3.4 |
4 |
5 |
6.5 |
8 |
13.5 |
19.3 |
29.8 |
50.2 |
70.9 |
149.5 |
232 |
332 |
595 |
914 |
| PN40 |
3.2 |
3.4 |
4 |
5 |
6.5 |
8 |
13.7 |
19.5 |
30.2 |
52.1 |
72.2 |
152.5 |
238.0 |
342.0 |
623.0 |
940 |
| KV |
4.2 |
7.4 |
12.0 |
19.0 |
30.0 |
47.0 |
77.0 |
120.0 |
188.0 |
288.0 |
410.0 |
725.0 |
1145.0 |
1635.0 |
2225 |
2906 |
| Main components materials |
Standard |
| Body |
Bonnet |
Bellow |
Bolt |
Nut |
Packing |
Gasket |
Sealing face |
Sutiable medium |
Suitable temp |
Design |
| GS-C25/GS-C2 5N/GP240GH/ 1.0619 |
GS-C25/GS-C2 5N/GP240GH/ 1.0619 |
SS304 |
Y |
YK |
Graphite |
SS304+ Graphite |
13Cr/13Cr 13Cr/STL STL/STL |
WATER OIL 、GAS STEAM |
≤350℃ |
EN13709 |
| END-END |
| 1.4308 |
1.4308 |
SS304 |
0Cr18Ni9 |
0Cr18Ni9 |
PTFE/ Grapthite |
SS304+ Graphite/ PTFE |
304/304 STL/304 STL/STL |
Corrosive Media |
≤200℃ |
EN558-1/DIN3202F1 |
| End dimensions |
| 1.4408 |
1.4408 |
ss316L |
0Cr18Ni9 |
0Cr18Ni9 |
PTFE/ Grapthite |
SS304+ Graphite/ PTFE |
316/316 STL/316 STL/STL |
Corrosive Media |
≤200℃ |
EN12627 |
| Test |
| EN12266 |
